Tire Valves for Heavy Truck & Bus |
|
 |
| V3.19 |
 |
| ETRTO NO. |
Ref. Length(mm) |
Rim Hole Dia(mm/in.) |
Parts |

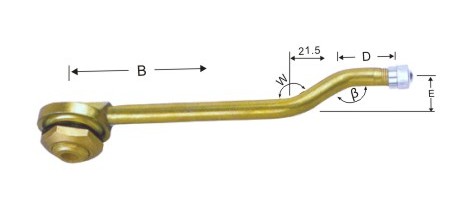

| B |
D |
E |
W |
Rubber Grommet |
Nut |
Core |
Cap |
| V3.19.1 |
92 |
24.5 |
14.5 |
147° |
20.5/.812" |
V9.11.2 |
V9.13.1 |
9002# |
CAP27 |
| V3.19.2 |
76 |
24.5 |
15 |
145° |
20.5/.812" |
V9.11.2 |
V9.13.1 |
9002# |
CAP27 |
| V3.19.4 |
91 |
24.5 |
10 |
155° |
20.5/.812" |
V9.11.2 |
V9.13.1 |
9002# |
CAP27 | |
|
|
|
|
