Tire Valves for Heavy Truck & Bus |
|
 |
| V3.18 |
 |
| ETRTO NO. |
Ref. Length(mm) |
Rim Hole Dia(mm/in.) |
Parts |

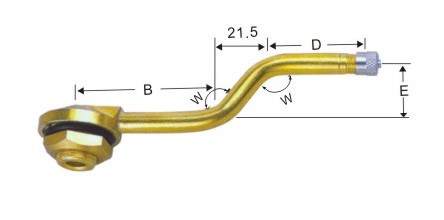

| B |
D |
E |
W |
Rubber Grommet |
Nut |
Core |
Cap |
| V3.18.1 |
64 |
24.5 |
14.5 |
146° |
20.5/.812" |
V9.11.2 |
V9.13.1 |
9002# |
CAP27 |
| V3.18.2 |
81 |
24.5 |
14.5 |
146° |
20.5/.812" |
V9.11.2 |
V9.13.1 |
9002# |
CAP27 |
| V3.18.4 |
51 |
37.5 |
19.5 |
138° |
20.5/.812" |
V9.11.2 |
V9.13.1 |
9002# |
CAP27 |
| V3.18.5 |
68 |
37.5 |
19.5 |
138° |
20.5/.812" |
V9.11.2 |
V9.13.1 |
9002# |
CAP27 | |
|
|
|
|
